1000kg 1500kg 3000mm Fully Electric Paper Roll Stacker with Clamps Carrier Lift Clamp Stacker with CE certificate

Applicable Industries : hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C

Condition : New

Place of Origin : Jiangsu, China

Terrain Adaptability : Indoor Flooring, Other

Brand Name : KAD

Power Souce : DC MOTOR/AC MOTOR

Operating Mode : Standing Operation

Warranty : 1 Year

Color : Green/Red/Yellow/Customized

Tire : PU Wheel

Load Center : 500mm

Turning radius : 1520

Load weight : 1500kg

Load height : 3000mm

Battery Cpacity : 24V/210Ah

Feature : High Efficiency

Showroom Location : None

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Min. Lifting Height : 90mm

Overall Dimensions : 1900(L)*810(w)*1900mm(h)

Core Components : Pressure vessel, motor, Bearing, Gear, Pump, Gearbox, Engine, Clamp

Weight (KG) : 1000 kg

Price : CN¥54,505.50/units 1-4 units

Contact Now

Product Description

Product Application

1000kg 1500kg 3000mm Fully Electric Paper Roll Stacker with Clamps Carrier Lift Clamp Stacker with CE certificate

Electric paper roll trucks are widely used in paper industry, packaging industry, printing industry, textile industry handling, suitable for paper tube, carpet, fabric, cable, wood, steel coil, rope, tyre, film rolls or all industries round shape warehouse workshop goods handling, shifting, stacking, electric turning and other work. Holding clip type: cylindrical, oil drum type, shaped, etc., the rotation mode for 90 degrees, 180 degrees and 360 degrees. With the help of the unique clamping, side shifting and rotating functions of the attachments, the goods can be transported, stacked, loaded or unloaded in a safer way, thus minimising the loss of goods.

Main Features

1.It is suitable for holding goods, rotating, raising and placing.

2.Suitable for cylindrical goods such as paper drum, paper roll, cloth roll, cable, cable, tire, oil drum, wood, etc.

3.It can rotate 180 degrees or 360 degrees electrically.

4.Clamping diameter and lifting height can be designed according to customer's goods and requirements.

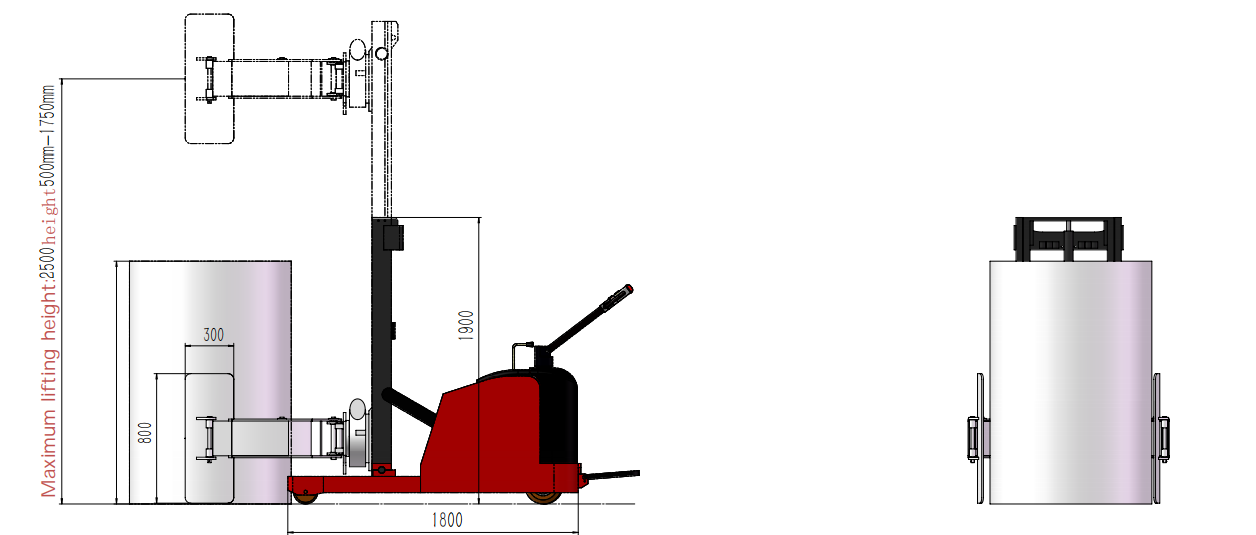

Specification

Rated load	kg	500/1000/1500
Max height of clamp	mm	1500/3000/customized
Min height of clamp	mm	100
Load center	mm	500
Operation way		Electric moving, lifting, rotating, graping
Turning radius	mm	1520
Aisle width	mm	2500
Length	mm	1900
Width	mm	810
Height	mm	1900
Mast		1-stage/2 stage
Adjustable extent of clamp	mm	700-1200
Rotation angle	°	90/180/360
Running speed (load/unload)	km/h	4.3/4.5
Hoisting speed(load/unload)	mm/s	110/160
Descent speed(load/unload)	mm/s	150/130
Climbing capability (load/unload)	%	5/8
Braking mode		Electronic brake
Tyres,material		Pu
Hydraulic motor	kw	2.5kw
Battery	v/ah	24/210Ah
Charger	v/a	24v/30
Weight	kg	1000

Detailed Images

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas if become our distributor

Our Company

Hand Pallet Truck

Manual Stacker

Drum Stacker

Full electric Stacker

Semi-electric Stacker

Electric Reach Stacker

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in paper package and Iron pallet.
We can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
